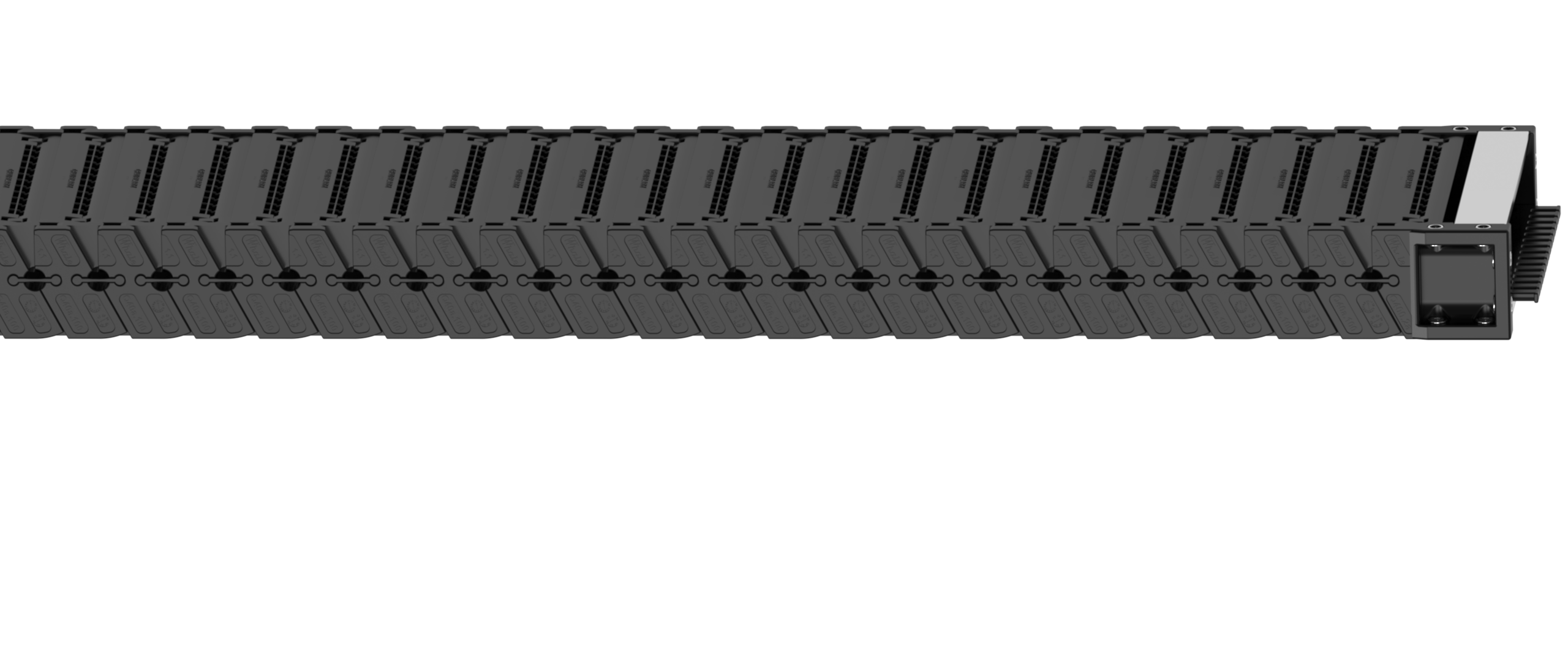

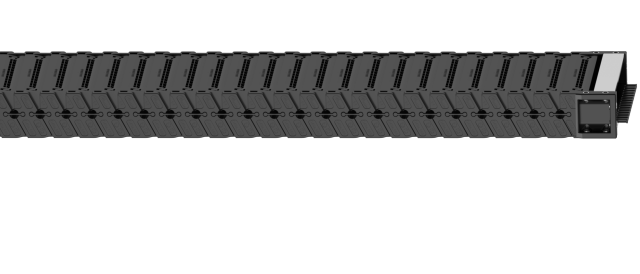

The QR40 cable track delivers stable cable movement for large machinery. Built by an experienced cable tray manufacturer, this energy chain supports heavy loads and ensures reliable routing across demanding motion cycles.
Heavy-Load Cable Routing Designed for High-Performance Machinery The QR40 is engineered for equipment designers and motion-control specialists who require robust cable routing during long travel distances or large-stroke motion. Unlike smaller cable management systems, the QR40 offers a reinforced body structure capable of supporting thick electrical cables, hydraulic hoses, or multi-line pneumatic tubing. Developed by a professional cable tray manufacturer, its link-to-link mechanics ensure consistent bending behavior and stable path control under repetitive movements. The enlarged inner cavity provides enough clearance for high-capacity cable bundles while preventing compression and internal abrasion. This makes the QR40 suitable for CNC machining centers, gantry robots, automated lifting units, and other platforms requiring dependable guided motion.
Technical Framework Enabling Smooth Articulation and Load Stability The QR40 uses precision-molded links with controlled pivot tolerances, allowing the chain to articulate smoothly across horizontal, vertical, or compound routing paths. The link structure reduces vibration and noise during rapid acceleration, while the reinforced sidewalls resist deformation under heavy loads. The chain interior includes optional dividers and cable separators that prevent cable intertwining and enhance cooling airflow. These performance characteristics help the energy chain maintain uniform bending radii, ensuring balanced force distribution even during tight-radius transitions or extended motion sequences. Engineering teams benefit from predictable chain performance that protects cables from torsional stress and supports long service life.
Adapted for Dynamic Environments Requiring High Reliability The QR40 is built for equipment operating in demanding production conditions, including high-frequency cycling, rapid directional change, and exposure to dust or coolant. Its open-port design allows technicians to install or replace cables quickly, significantly reducing maintenance time. The robust geometry ensures stable motion control even when carrying multiple cables with different stiffness levels. This versatile cable track supports safe and organized routing across factory automation lines, high-speed mechanical stages, and engineering systems where uninterrupted motion and cable integrity are critical. Its long-term reliability contributes directly to operational consistency and reduced equipment downtime.
Use Scenarios
Mechanical Designers Configuring Long-Travel Equipment Routes For designers developing equipment with extended travel distances—such as gantry mills, robotic tracks, or conveyor-mounted tooling—the QR40 provides reliable cable routing with minimal motion resistance. Its stable articulation protects cables during rapid acceleration or deceleration. When integrated with fixed cable management solutions offered by a cable tray manufacturer, the QR40 enables a complete hybrid routing system from stationary entry points to high-mobility zones.
Automation Integrators Building Multi-Axis Production Systems System integrators installing multi-axis machines rely on consistent bending behavior to ensure cable reliability during synchronized mechanical motion. The QR40 maintains uniform curvature across complex movement patterns, preventing cable entanglement or signal disruption. Its openable structure simplifies cable replacement during equipment commissioning. This makes the QR40 an ideal cable track for automated manufacturing, robotics, and packaging systems requiring dependable motion guidance.
Maintenance Teams Managing Cable Protection in High-Duty Machinery Maintenance engineers responsible for servicing high-duty machines benefit from the QR40’s quick-access design, which allows cables to be replaced without removing the entire chain assembly. This significantly reduces downtime in environments with tight production schedules. The durable energy chain construction ensures that cables remain properly aligned even after extended wear, enabling maintenance teams to uphold machine performance without complex re-routing procedures.
About Us
Whale-Tec designs and manufactures engineered solutions for cable routing, dynamic cable protection, and automated equipment support. Our portfolio includes cable tracks, energy chains, structural components, and motion-support hardware tailored for demanding applications across automation, machinery, and system integration. With strong production capabilities and a commitment to dimensional accuracy, we supply equipment builders and engineering firms with reliable components that maintain performance under continuous mechanical cycles. Our focus is on material durability, system compatibility, and engineering precision. Products are manufactured under controlled quality standards to ensure seamless integration into both new equipment and long-term service environments. Whale-Tec continues to support OEM manufacturers, integrators, and facility operators who require stable, long-life solutions for cable management. Share your equipment specifications so our engineers can determine the ideal QR40 configuration!
FAQ
1.Does the QR40 support large cable bundles or mixed hose types? Yes. The chain interior allows dividers for organizing electrical cables, pneumatic tubes, and hoses.
2.Is QR40 suitable for long-stroke applications? Yes. Its reinforced structure and smooth articulation make it ideal for long-travel motion paths.
3.Can it operate in dusty or coolant-rich environments? Yes. The polymer composite resists chemical exposure and maintains stability under coolant or debris.
4.Is the QR40 compatible with fixed routing supports? Yes. It integrates easily with systems provided by a cable tray manufacturer, allowing hybrid routing layouts.
5.Do you offer assistance for bending radius and chain length selection? Yes. Our engineering team provides technical support to help determine the correct specifications.
