• Cable chain GR28 series | Lids every link: openable from both sides | Inner height: 28mm
  • Cable chain GR28 series | Lids every link: openable from both sides | Inner height: 28mm

Cable chain GR28 series | Lids every link: openable from both sides | Inner height: 28mm

  • Inner height: 28mm
  • Inner width:  38-100mm
  • Bending radii (R): 75-250mm
  • Pitch: 46mm
  • Cables are protected from swarf and debris
  • High load: perform at optima under heavy duty
  • Smooth design: smooth inner surface to reduce wear
$0.00
GR28.Bi.R:
GR28.038.R
GR28.050.R
GR28.075.R
GR28.100.R
  • Cable chain GR28 series | Lids every link: openable from both sides | Inner height: 28mm

Description

Product installation:
  • Unsupported
  • Gliding
  • Hanging & standing
  • side-mounted
  • Bidirectional rotary

Product description:
Cable chains GR28 belong to GR series, high load bearing and stong unsupported capacity, making the ideal for high dynamic applications.
  • Tiewrap plates and cable clamps can be installed at the mounting bracket according to requirements, which is convenient to fix cables.
  • Enclosed type formed by lids protect cables from swarf and oil pollution.
  • Smooth inner surface effectively reduces wear.
  • Long service lifespan.
  • ESD, flame retardant, corrision protection type can be provided as requirement.
  • UL/RoHS/Reach certificates are available.

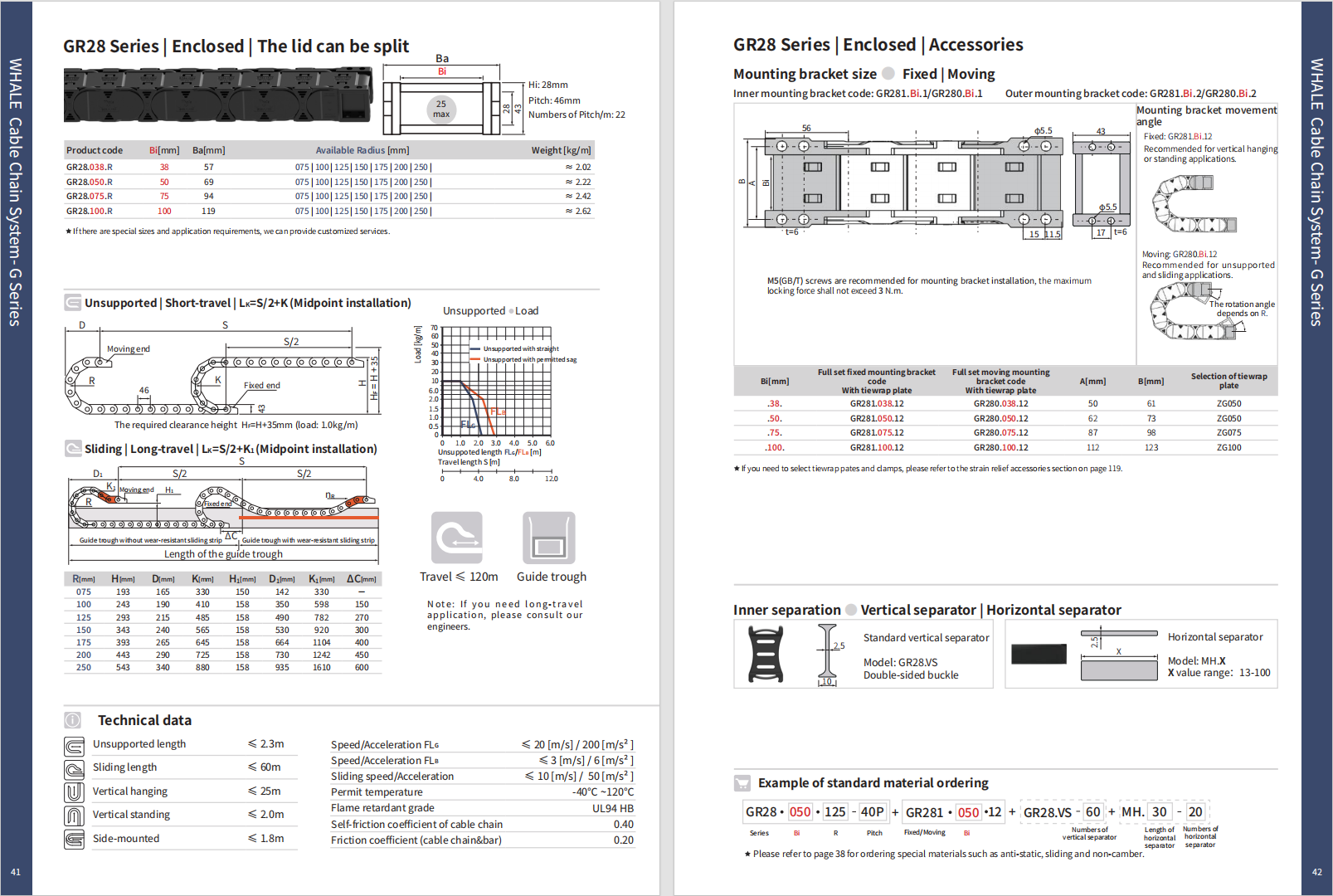

Technical data:

Download
