Description
Structural Design and Key Dimensions

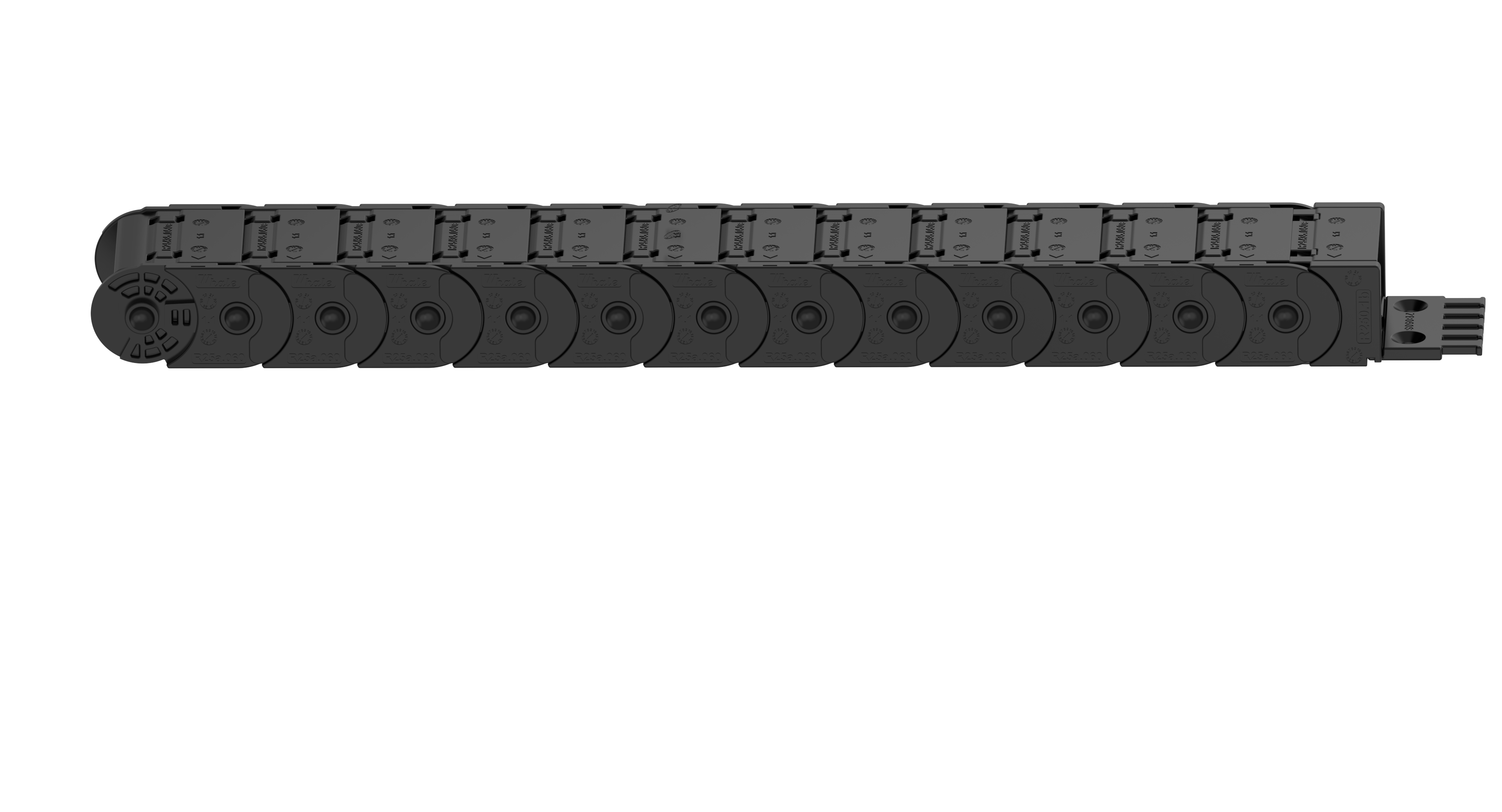

The R25 series belongs to openable cable chains that permit crossbars to be removed or snapped open for easy cable insertion. The chain has a pitch of 25 mm, with inner height (Hi) of 35 mm. The inner opening widths (Bi) available begin from 25 mm, matching different cable bundle sizes. The outer width (Ba) correspondingly expands with inner opening. Various bending radii are offered, ensuring compatibility with required minimum cable curvature. The crossbar removal capability simplifies maintenance when working with nylon cable, reducing disassembly time and risk to cables. The material selected for R25 chain provides rigidity while maintaining lightweight characteristics, aiding system dynamics where mass in motion matters.
Performance and Load‑Span Characteristics
R25 supports installation in multiple orientations: vertical hanging, vertical standing, side‑mounted, and horizontal travel. The maximum unsupported lengths (FLG) and allowable sag (FLB) depend on cable fill weight, speed, acceleration, and installation configuration. Within Whale‑Technology’s data, chains in this pitch/height class deliver satisfactory performance under moderate fill weights when travel lengths are limited, or when design includes supports or guides. Use of separators (both vertical and horizontal) is advised when multiple cables/hose bundles are present, to prevent internal abrasion, maintain cable order, and distribute load evenly inside the chain. Proper match of inner opening (Bi) to cable bundle size, plus suitable bending radius, ensures that nylon cable chains do not overstress the internal nylon cable, preserving life under repeated motion.
Accessory Options, Material Specifics, and Ordering Variations
R25 chain can be ordered with accessories like vertical and horizontal separators, strain‑relief brackets, fixed and moving mounting brackets. Mounting brackets are coded to match chain widths and inner opening sizes. Special finishes/material options may include anti‑static treatments, sliding interfaces, or non‑camber designs as needed by environmental constraints. The openable bars allow insertion of cable bundles without fully dismantling chain runs—useful when managing nylon cable or mixed cable/hoses layouts. Ordering clarity requires specifying inner opening (Bi), outer width (Ba), required bending radius, travel type (e.g. side‑mounted vs vertical), and accessory items. As a nylon cable chain manufacturer, Whale‑Technology maintains catalog data showing weight per meter, radii options and span capabilities for R‑series chains, helping users to define correct specifications for application.
Product Advantages
Ease of Cable Installation and Maintenance
Because the R25 crossbars can be snapped open, installation of nylon cable bundles is facilitated without dismantling full chain segments. The open‑bar design also allows inspection, cable replacement, or re‑routing in situ. This reduces labor and potential damage to cables compared to closed‑bar versions. As maintained by the nylon cable chain supplier, such ease translates to lower downtime in systems with frequent cable changes or maintenance.
Adaptability Across Install Orientations and Span Requirements
R25’s size‑options make it suitable for various install types – vertical hanging, standing, side‑mounted, and horizontal travel. Unsupported lengths and acceptable sag values depend on fill type and speed; for short travels or moderate loads, no sag or minimal supports suffice. For longer travel or heavy fill, separators and guide supports are recommended. Matching bending radius to cable bundle shape is important to avoid fatigue. The chain’s material properties (nylon) provide strength and flexibility needed in these orientations. For a nylon cable chain manufacturer, provision of these variants ensures that users can adapt R25 chain to many real‑world layout constraints.
Material Durability and Cable Protection
The chain’s nylon composition resists corrosion and wear, maintains shape under repeated movement, and supports internal cable protection via smooth internal surfaces and appropriate separators. Internal edges are designed to avoid sharp contact points, minimizing abrasion to nylon cable insulation or cable jackets. When used with strain relief and correct fill limits (not exceeding recommended percentage of inner volume), the chain helps maintain cable integrity over long life. As a nylon cable chain supplier, Whale‑Technology ensures the R‑series meets material and structural standards required in industrial automation contexts.
Use Scenarios
Robotic Arm Cable Routing with Frequent Access
In robotic or pick‑and‑place equipment where cable bundles require periodic change or inspection, the R25 open‑bar design allows quick access to internal cable paths. Snap‑open crossbars permit addition or removal of cable bundles without disturbing fixed mounting points. Use of separators ensures orderly layout inside the chain. For applications using nylon cable, avoiding sharp bends or stress concentrates via proper radius and fill is critical; R25 supports these through its size options and material build.
Long Vertical Cable Runs (Hanging or Standing)
For installations with vertical drop or lift (e.g. cranes, lifting machinery, tower‑like structures), the R25 chain supports vertical hanging height provided fill weights and acceleration are kept within defined tolerances. Vertical standing also viable for moderate lengths. Proper strain relief at ends prevents load transfer to cable ends. Separators help distribute bundle weight. Using durable nylon cable chains in such scenarios shields cables from abrasion and movement‑induced wear over long vertical spans.
Constrained Side‑Mounted Installations
Where space is limited on the side of equipment or panels, or travel is purely lateral, R25’s available widths and snap‑open feature help tailor the installation to the achievable space. Side‑mounted orientation of R25 allows use of moving/fixed mounting brackets suited to frame mounting. The openable crossbar allows cable insertion even where overhead access is constrained. For nylon cable chain supplier‑specified systems in machine cabinets, automation frames, or machinery side faces, R25 offers a balance of protection and flexibility.
About Us
Whale‑Technology is a cable protection product company located in Shanghai. Its offerings include nylon cable chains, dust‑free cable chains, structural cable holders, drag chains, and accessory components dedicated to cable routing and protection in motion systems. Product catalogs list thousands of models of chains with varying pitches, heights, inner opening sizes, bend radii, and mounting accessory options. Daily production capacity surpasses 10,000 meters of chain. Material properties are certified for strength, abrasion resistance, moisture exposure, and dimensional stability, supporting full nylon cable chain manufacturer credentials. The firm provides support for user specification of chain type, size, and configuration to ensure proper fit in nylon cable chain supplier relationships with system integrators and end users.
FAQ
What inner opening sizes are available for the R25 series when sourcing from a nylon cable chain supplier?
Available inner opening widths (Bi) start from about 25 mm and increase in steps, matching differing cable bundle sizes so that the internal cavity accommodates the nylon cable or hose bundle without tight compression.
How does the R25 handle different installation orientations (vertical, side‑mounted, standing)?
The R25 series supports vertical hanging, vertical standing, side‑mounted, and horizontal orientations. Maximum unsupported spans depend on cable weight, fill, speed, and bending radius. Using separators and strain‑relief improves performance in more demanding orientations.
Can crossbars in R25 be opened for cable insertion or maintenance?
Yes. The R25 chain has snap‑open crossbars (openable bars) allowing crossbars to be removed so that cable bundles can be inserted or replaced without dismantling full chain runs.
How is cable protection ensured inside R25 chains when using nylon cable?
Protection comes from selecting correct inner opening size, using separators (vertical/horizontal) to organize bundles, avoiding over‑filling the cavity, selecting proper bending radius, and using material surfaces and edges that do not abrade cable insulation.
What information should be provided when ordering R25 from a nylon cable chain supplier?
Specification should include required inner opening width (Bi), outer width (Ba), pitch (25 mm), inner height (35 mm), bend radius, length of travel (horizontal or vertical), orientation (side‑mounted, vertical, etc.), accessory needs (separators, strain‑relief, mounting brackets), and material variant if environmental demands require.
Order R25 series nylon cable chains for your next cable protection requirement!
