Description
Enclosed Design With Key Dimensional Data

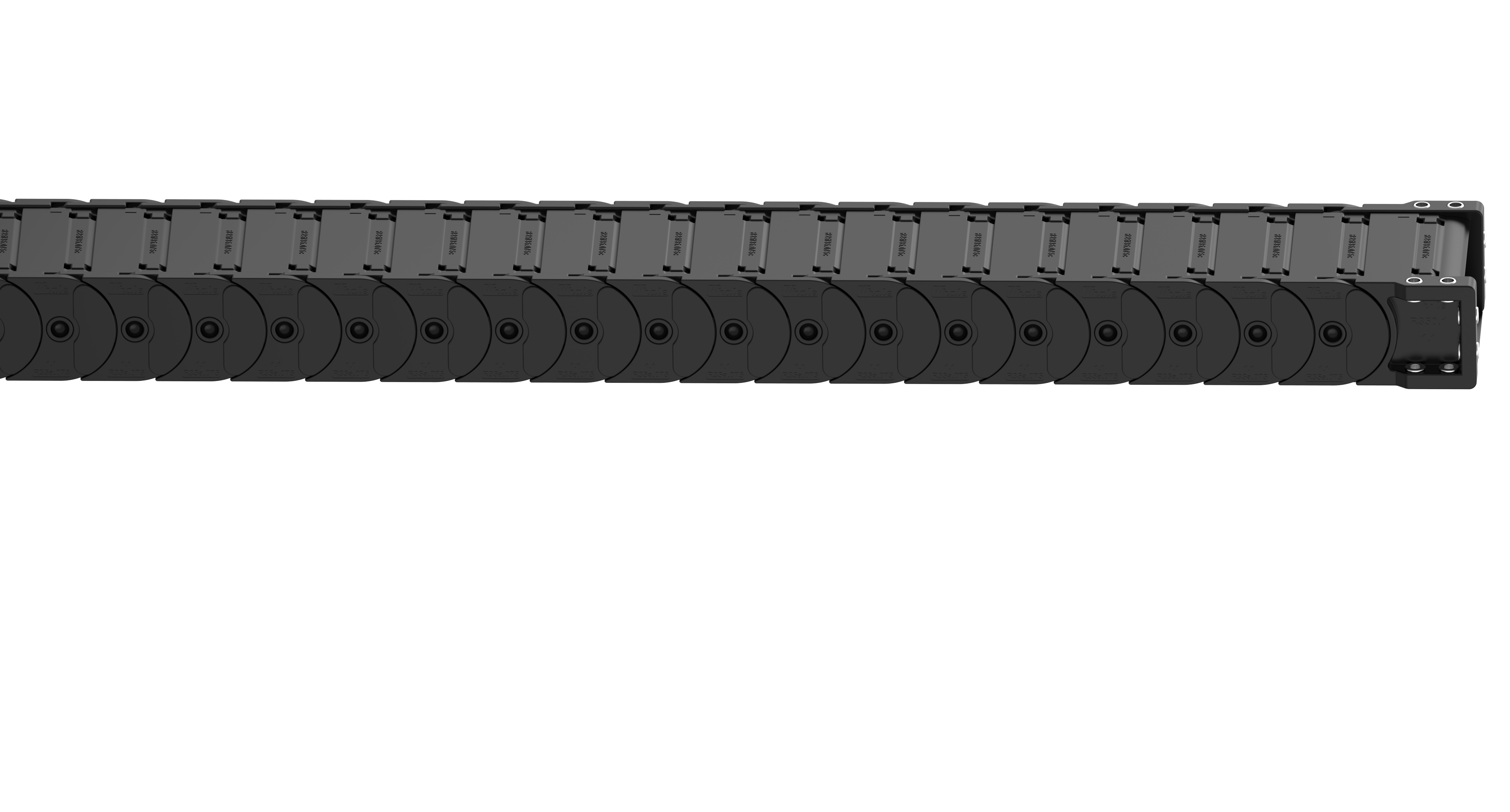

R35 is an enclosed (covered) cable chain series built to protect internal components with an integrated cover that can be removed when access is required. The chain’s inner height (Hi) is 35 mm. Inner opening width (Bi) choices span from moderate to large widths in multiple steps, increasing the outer width (Ba) accordingly. Bending radii options vary depending on chain width to preserve adequate bend curve and avoid cable stress. End mounting includes fixed and moving brackets appropriate for each width class. Cover design ensures protection of housed elements. This structure is vital for handling nylon cable bundles in environments where dust, particles, or physical contact are concerns.
Performance, Load Capacity, and Orientation Options
The R35 series supports side‑mounted, vertical hanging, and vertical standing installations. Maximum vertical hanging height extends up to 30 m under proper fill and environmental conditions. Unsupported span (horizontal portion without bottom support) is limited by fill weight, bend radius, speed, and chain width. Usage of separators (horizontal or vertical) is recommended when multiple cables or hoses are present to avoid internal rub and ensure orderly distribution of internal load. Matching the chain’s inner opening size to cable bundle size and choosing appropriate mounting brackets help maintain stability, reduce vibration, and extend the life of internal nylon cable chains.
Materials, Accessories, and Variant Choices
Material for R35 is durable nylon, chosen for its wear resistance and ability to retain form under repeated motion and environmental exposure. Accessory options include vertical separators, horizontal separators, strain‑reliefs, tie‑plate or tie‑wrap fixtures, fixed and moving mounting brackets. These accessories help manage cable bundle layout, relieve stress at end attachments, and ensure smooth internal surfaces. For installations where cover removal is necessary, the design allows access without full disassembly. Specification when ordering should include inner opening width (Bi), outer width (Ba), required bend radius, orientation (side, vertical hanging or standing), accessory needs, and any special material or treatment needed. As a nylon cable chain supplier, this level of detail supports correct matching for customer requirements.
Product Advantages
Enhanced Protection Through Enclosed Cover
The covered design of R35 prevents ingress of dust, chips, or mechanical impact, shielding internal nylon cable and wiring from environmental hazards. The cover also helps reduce noise and vibration caused by loose debris inside the chain. Edges inside the chain are finished to minimize sharp contact points, which reduces wear on cable insulation or sheathing. When frequent inspection or cable replacement is needed, cover removal is possible without dismantling the chain structure thereby balancing protection with maintainability.
Versatility in Install Orientations and Span Performance
Support for multiple orientations (side, vertical hanging, vertical standing) gives flexibility in system layout. The R35’s structural design allows long vertical hangs when conditions permit. For horizontal spans, unsupported lengths are limited but acceptable if speed, cable fill, and bend radius are properly managed. Use of separators and proper bracket mounting will reduce sag, oscillation, or stress. In systems where motion and orientation change, R35 offers a reliable option among nylon cable chains to ensure consistent operation.
Durability, Material Stability, and Accessory Integration
Nylon material used in R35 resists abrasion, maintains mechanical integrity under repeated bending, and tolerates temperature ranges and environmental exposure typical of automation contexts. Accessories such as separators and strain relief reduce internal friction, prevent cable crossing, and relieve endpoint stress. Mounting brackets designed for the chain widths ensure secure attachment. The finish and internal cavity geometry aim to protect nylon cable from sharp edges. These material and accessory characteristics make R35 suitable for extended service life and lower maintenance when work is done under specification.
Use Scenarios
Vertical Routing in Tall Structures
In installations such as vertical lifts, hoists, or tall machine columns, cable bundles may need vertical hanging over many meters. R35 supports vertical hanging up to approximately 30 m when cable fill, speed, and bracket anchoring meet specification. For such use, strain relief at the top or fixed mounting point is crucial, and separation inside the chain helps distribute weight. For nylon cable chain supplier‑specified systems where long vertical height is needed, R35 provides combination of enclosure and structural stability.
Side‑Mounted Runs in Controlled Environments
Where space constraints exist on the sides of machine frames, panels, or cabinets, side mounting the R35 enclosed chain offers protection of internal components while providing the cover needed to resist external contact or particulate ingress. Fixed and moving mounting brackets make side installation feasible. Cover removal allows cable insertion or inspection even in constrained settings. Applications in machine side panels or control system housings benefit from the enclosed protection of R35.
Stationary or Standing Vertical Applications
In cases where the chain is not moving through long horizontal travel but is used to house cables in vertical standing posture (e.g. fixed tower or frame), R35 helps keep wiring organized, protected, and accessible for maintenance. With proper fill, internal separators, and suitably sized Bi, the chain ensures minimal wear on nylon cable bundles. Maintenance access via removable cover allows inspection without disturbing mounting.
About Us
Whale‑Technology is a Shanghai‑based manufacturer of cable protection systems, including nylon cable chains, dust‑free cable chains, drag chains, and structural cable holders. The company offers thousands of models varying in pitch, height, inner opening width (Bi), outer width (Ba), and bend radius. Daily production exceeds 10,000 meters of chain. Accessory options include separators, mounting brackets, strain reliefs, covers, and tie‑wrap plates. As a nylon cable chain manufacturer and partner to system integrators, the company supports specification accuracy to ensure the correct fit, protection, and performance of the chain and internal nylon cable under industrial conditions.
FAQ
What inner width (Bi) options does the R35 series offer from a nylon cable chain supplier?
Bi widths start in moderate sizes and extend through large sizes, matching cable bundle dimensions so that internal room prevents compression and allows safe cable layouts.
Is the R35 suitable for vertical hanging in applications specified by end users working with nylon cable chains?
Yes, when cable fill weight, mounting brackets, and speed are within allowable limits. Vertical hanging up to ~30 m is supported under proper configuration.
Can the cover on R35 be removed for cable insertion or inspection?
Yes, the enclosed cover is designed to be removable, enabling cable insertion or inspection without removing the full chain run.
What accessory options are available with R35 when ordered through a nylon cable chain supplier?
Options include horizontal and vertical separators, fixed or moving mounting brackets, strain reliefs, tie‑wrap or tie‑plate fixtures, all selected based on chain width and orientation.
What specification data should be provided when ordering R35 chain to ensure correct performance?
Required data include inner opening width (Bi), outer width (Ba), bend radius, orientation (side‑mounted, vertical hanging or standing), chain length or travel path, cable bundle size and type, accessory needs, and any environmental material or treatment requirements.
Specify R35 enclosed nylon cable chains for your next industrial cable protection project!
