Description
Robust Structure for Industrial Cable Carriers

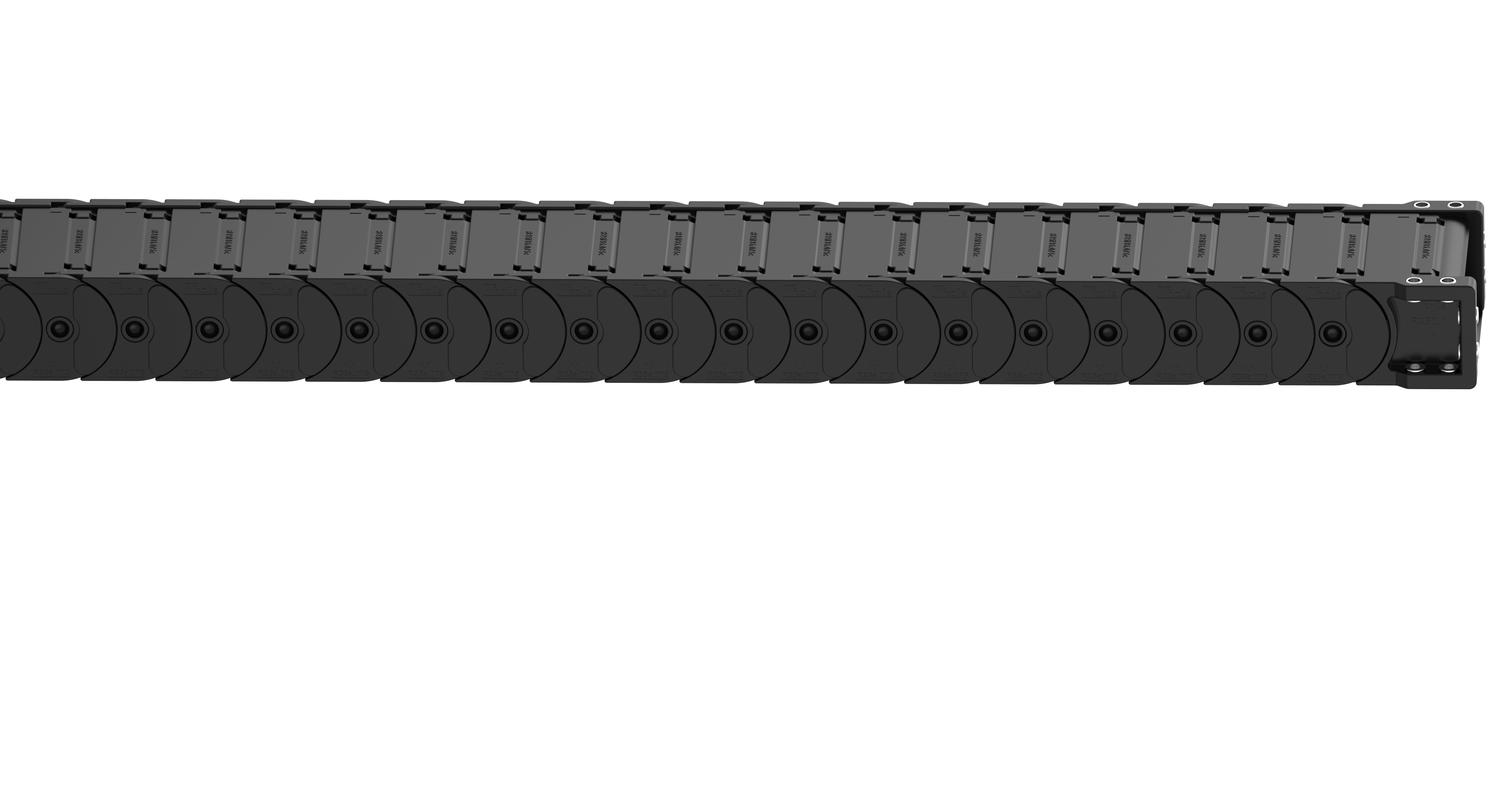

The R40 series drag chain comprises interlinked nylon modules engineered for wear resistance and long‑term stability in motion applications. Each link is molded via Whale‑Tec’s injection molding process with dimensional precision to accommodate bending, extension, and constant movement without excessive gap or deformation. The chain’s internal geometry ensures stable support of enclosed cables or hoses, minimizing friction and external abrasion. This construction aligns with the expectations where nylon cable chains must preserve cable integrity and routing over thousands of cycles.
Precision Manufacturing and Component Consistency
Manufacturing of the R40 series follows strict protocols at Whale‑Tec, which operates a production facility covering over 12,000 m², including mold‑making workshops, injection workshops, and assembly warehouses. Internal quality control via Whale Laboratory ensures the R40 meets specs for uniform link dimensions, joint tolerances, and material quality. The process reinforces the chain’s performance where nylon cable chain supplier standards demand consistent interlink articulation, load capacity, and environmental resistance. Each segment is tested to maintain uniformity in fit and motion response.
Adaptation to Usage Demands and Operating Conditions
Applications for the R40 drag chain include environments where external exposure to particulates, mechanical wear, or frequent movement occurs. The nylon material resists corrosion, moisture, and many common industrial contaminants. The drag chain supports cables and hoses in energy chains over cranes, machine tools, or automated systems. Its strength enables safe routing, protection from snagging or entanglement, and reduces maintenance on cables. When interpreted through a nylon cable chains lens, the R40’s design helps safeguard internal wiring or hydraulic/pneumatic lines, maintaining system reliability under repeated motion.
Product Advantages
Modular Flexibility & Link Geometry
The R40 chain’s design allows modular assembly—segments can be added or removed to adjust the total length. The link shape and internal spacing are engineered to support different cable diameters without compression or crowding. This ensures that when deploying nylon cable chain manufacturer‑grade chains, users can customize installation according to cable bundle size, routing path curvature, and required bend radius, reducing stress and avoiding cable fatigue. The profiles of the links are also such that external surfaces do not snag or induce wear on adjacent moving components.
Material Quality & Production Precision
The nylon material used is selected for toughness, dimensional stability under load, and resistance to environmental factors. Whale‑Tec’s injection molding capacity, combined with rigorous internal testing via Whale Laboratory, assures consistency of polymer formulation, link strength, and mechanical tolerances. The chain joints are molded to maintain articulation while resisting loosening or rattling. This technical rigor means buyers relying on a nylon cable chain supplier can expect high‑repeatability, less downtime, and lower rejection in assembly.
Real‑World Performance Under Load
In actual use, the R40 series drag chain supports cable protection in dynamic mechanical systems: robotics, CNC machines, gantry axes, automated handling equipment, etc. Under extended cyclic motion, the drag chain maintains its shape and alignment, reducing binding, maintaining cable routing accuracy, and minimizing wear on the cables inside. This real‑world value is especially relevant when sourcing from a nylon cable chains provider where performance under continuous motion and in industrial environments is critical.
Use Scenarios
Machine Tools with Multi‑Axis Movement
In multi‑axis CNC routers or milling machines, cables for motors, coolant lines, or sensors often must move in complex paths. Installing the R40 drag chain along each axis ensures the cables follow predictable, protected paths, avoiding tangles or abrasion. Because of its molded link geometry and internal spacing, the chain accommodates bundled cables without impeding the motion or risking cable interference—even in tight bend radius segments.
Automated Material Handling and Gantry Systems
In gantry cranes, overhead slides, or horizontal/vertical lifting systems, cable and hose assemblies are exposed to repeated extension and retraction. The R40 chain offers durable protection and smooth articulation across the travel span. It resists environmental exposure (dust, oil, moisture) and maintains structural integrity so that system maintenance intervals are lengthened, and cable failures are minimized when supplied by a trusted nylon cable chain supplier.
Robotics and Robotic End‑Effectors
Robots with articulated arms, especially in industrial automation, need cable routing that allows high degrees of freedom without risk of pinching or snagging. The R40 chain can guide power, signal, or fluid lines into robot arms or end‑effectors, supporting twisting and bending without compromising cable performance. In robotics settings where nylon cable chains must endure complex motion profiles, R40 provides both protection and consistent movement over many cycles.
About Us
Whale Technology Co., Ltd. is a Shanghai‑based company founded in 2016 that specializes in injection‑molded industrial components, notably drag chains and related cable carriers. The company operates a factory in Changzhou covering more than 12,000 m², including dedicated workshops for molds, injection molding, and assembly, along with intelligent warehousing.
Whale Technology maintains an inventory in the hundreds of thousands of meters and offers over 3,000 models of drag chains and cable carrier systems. They hold more than 20 patents (approved and pending) and have obtained multiple quality certifications both domestically and overseas.
Operational capability includes a daily production capacity of about 10,000 meters, supported by dedicated internal testing via the Whale Laboratory to assure the performance and durability of every chain in terms of material stability, articulation, abrasion, and consistent dimensions.
FAQ
What load capacity can the R40 drag chain support under continuous motion?
Load capacity depends on the cross‑section of the chain, the number and diameter of cables or hoses enclosed, and the travel dynamics. Threaded into nylon cable chains specification sheets, Whale‑Tec’s internal testing assures link uniformity and strength, but exact load ratings should be requested with technical drawings or via direct inquiry to ensure match with system requirements.
How do I choose the correct size R40 chain for my cable bundle?
Select the inside width and height of the chain based on your thickest bundle of cables or hoses, considering additional clearance for heat dissipation and possible cable movement. Ensure your bend radius is compatible with chain geometry. As a nylon cable chain supplier, Whale‑Tec offers various internal dimensions so you can pick a model that avoids cable compression or excessive friction.
Is the R40 chain resistant to environmental factors like moisture, dust or temperature changes?
Yes. The nylon material resists moisture and many common dust and particulate exposures. Additionally, Whale’s quality control includes testing in environments to ensure link movement remains smooth, tolerances remain tight, and performance does not degrade under typical industrial temperature variation. Chains are designed for demanding settings where nylon cable chains must endure adverse environments.
What is the delivery capacity for large volume orders of R40 chains?
Whale‑Tec’s manufacturing capacity is substantial: daily output reaching approximately 10,000 meters, with factory facilities over 12,000 m², intelligent assembly and warehousing to handle large order volume.
Can the R40 chain be supplied in custom lengths or with special link colors or markings?
Customization options depend on mold design and minimum order quantities. Whale‑Tec has mold workshops and R&D capacity (20+ patents) to support variations. For special requirements—whether length, marking, or modification—it is best to consult with the supplier directly, providing specifications for evaluation.
Request a detailed quotation for R40 nylon cable chain today and secure your industrial cable protection!
